4G WIFI Bus Passenger Counting System with Real-Time Counting and 98% Accuracy MDVR
제품 상세 정보:
| 원래 장소: | 심천, 중국 |
| 브랜드 이름: | Vanwin Tracking |
| 인증: | CE/FCC/RoHS |
| 모델 번호: | VW-9024C |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | negotiated |
| 포장 세부 사항: | 기본적으로 중립 판지 상자 패키지. 주문량이 300개에 도달하면 맞춤형 패키지를 사용할 수 있습니다. 사용자 정의 로고 인쇄는 100개 이상 주문 시 가능합니다. |
| 배달 시간: | 샘플의 경우 2-3 일, 큰 주문의 경우 15-30 일 |
| 지불 조건: | T/T 또는 Western Union 또는 PayPal |
| 공급 능력: | 한 달에 50,000pc; |
|
상세 정보 |
|||
| 전원공급장치: | DC8V-36V | 보관 온도: | -40C - 85C |
|---|---|---|---|
| 이미지 센서: | 1/3CMOS | 수평 해상도: | 700 TV 라인 |
| 작동 전류: | 370MA ≤ | 작동 온도: | -20~+70℃ |
제품 설명

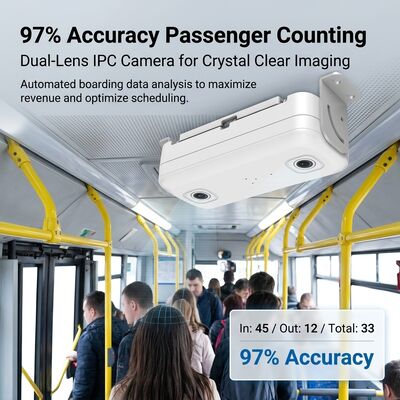

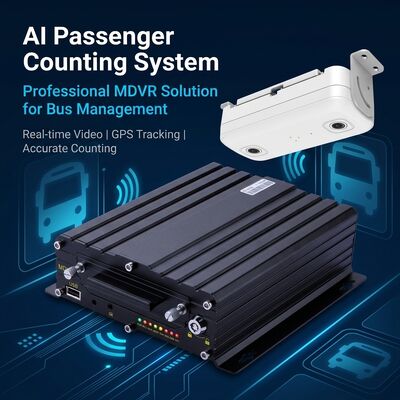

4G WIFI Bus Passenger Counting System Real-Time Counting MDVR
Vanwin bus passenger counter is a new intelligent bus passenger flow statistics and analysis device that integrates functions such as video capture, video processing, 4G communication, and GPS/BD positioning.

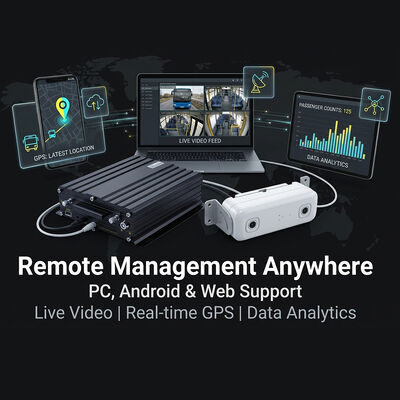

It uploads real-time statistical analysis passenger flow data to the backend bus passenger flow statistical analysis platform. The platform has a rich variety of data report types and detailed data comparison. Managers can view the passenger flow data of each vehicle, each route, and each station in real time through the report system. At the same time, they can also view multi-dimensional data such as year, month, Sunday, hour, minute, and second, as well as comparative data of different time periods at any time.
Key Features
- High accuracy: The accuracy of various vehicle models reaches 98%+
- Wide voltage support: 9-60V wide voltage design, stronger stability

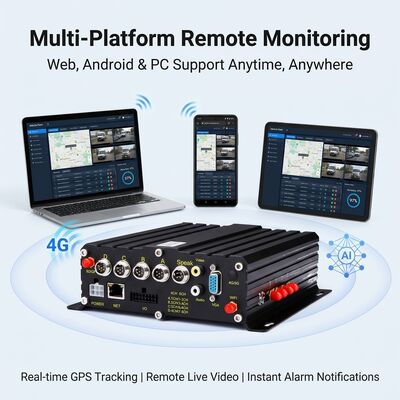

- Working independently: Built in GPS+4G full network communication module+self-developed bus passenger flow platform

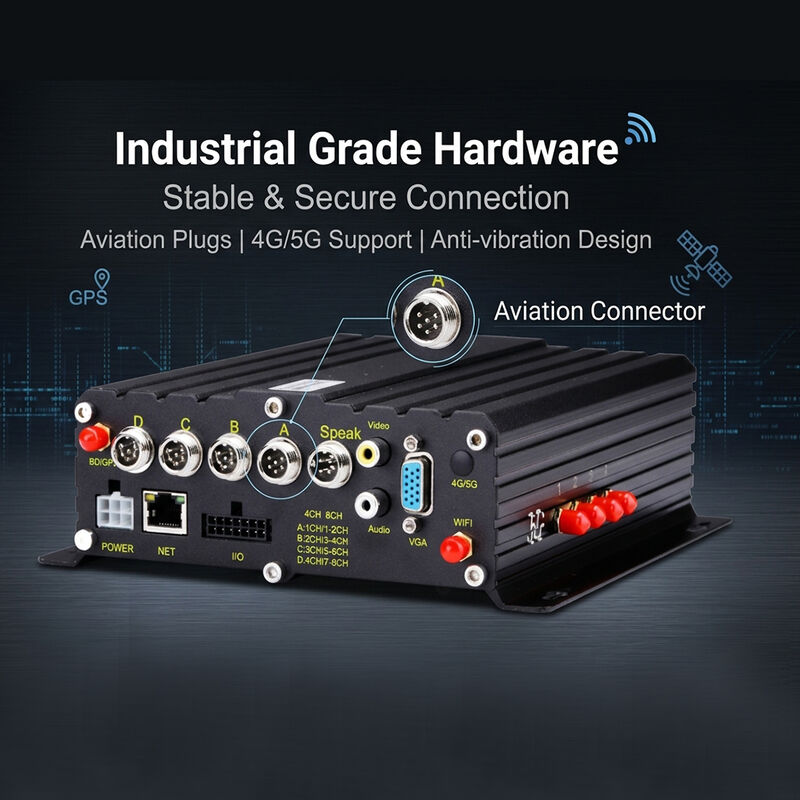

- Multiple interfaces: Support RJ45/485/RS232/high-level interface
- Adaptability to multiple vehicle models: Suitable for various vehicle types such as subways, urban buses, long-distance tourist buses, intercity buses, and minibuses
- Original manufacturer: Independently developed and produced, with guaranteed delivery time and quality
Applications
Ideal for public transportation systems, private bus companies, and shuttle services looking to enhance their passenger management processes.
Technical Specifications
| Image sensor | 1/3CMOS |
| Video format | PAL/NTSC(optional) |
| Horizontal resolution | 700 TV Lines |
| Image output | Simultaneous sampling output |
| Lens spacing | 5cm(12cm optional) |
| Lens parameters | 960*576 pixels, 2.8 mm (2.8mm/3.6mm/4mm/6 mm optional) |
| White balance | Automatic |
| Shutter | 1/50-1/80000(seconds) 1/60-1/80000(seconds) |
| Frame rate | 25 (frames/ second) |
| Video output interface | Composite video output,75Ω 1Vp-p BNC |
| Gain | automatic gain control |
| Signal to noise ratio | >48db |
| Power | 5-24Vvoltage input |
| Working current | 370MA≤ |
| Size | 133(W)mmx50(H)mmx59.65(L)mm(L*W*H) |
| Weight | about 0.35KG (single camera) |
| Operating temperature range | -20~+70℃ |
| Relative humidity | 10%～90%non-condensing |
| Heat dissipation | Passive structural heat dissipation |
Product Images
Frequently Asked Questions
What is a Bus Passenger Counter?
A Bus Passenger Counter is a device that accurately counts the number of passengers boarding and alighting from a bus, providing real-time data for better operational management.
How does the Bus Passenger Counter work?
It typically uses infrared sensors or pressure sensors to detect and count passengers as they enter or exit the bus. The collected data is displayed in real-time and can be stored for later analysis.
Is it easy to install?
Yes, the Bus Passenger Counter is designed for easy installation on various bus models. Most units come with user-friendly mounting options and detailed installation instructions.
Can the device be integrated with existing systems?
Absolutely! The Bus Passenger Counter can seamlessly integrate with existing transport management systems, allowing for centralized monitoring and data analysis.
What kind of data can I expect from the Bus Passenger Counter?
You can expect real-time passenger counts, historical data, and detailed reports that show trends in passenger numbers over time, which can help in route optimization.
Is the device durable?
Yes, the Bus Passenger Counter is built to withstand harsh conditions. It is weather-resistant and designed for long-term use in a busy transportation environment.
How does it improve safety?
By providing accurate passenger counts, the device helps prevent overcrowding on buses, thereby ensuring a safer travel environment for both passengers and drivers.
What are the maintenance requirements?
The Bus Passenger Counter requires minimal maintenance, primarily periodic cleaning and software updates to ensure optimal performance.
Is it energy-efficient?
Yes, the device operates on low power consumption, making it energy-efficient and cost-effective over time.
Who can benefit from using a Bus Passenger Counter?
Public transportation authorities, private bus companies, and shuttle services can all benefit from implementing a Bus Passenger Counter to improve their operational efficiency and passenger experience.
