4G GPS WIFI AI ADAS DMS BSD Dashcam Recorder MDVR System for Fleet Management
제품 상세 정보:
| 원래 장소: | 심천, 중국 |
| 브랜드 이름: | Vanwin Tracking |
| 인증: | CE/FCC/RoHS |
| 모델 번호: | VW-DVR08AI |
| 문서: | news-T5504 V2 English manua... -.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1PC |
|---|---|
| 가격: | negotiated |
| 포장 세부 사항: | 기본적으로 중립 판지 상자 패키지. 주문량이 300개에 도달하면 맞춤형 패키지를 사용할 수 있습니다. 사용자 정의 로고 인쇄는 100개 이상 주문 시 가능합니다. |
| 배달 시간: | 샘플의 경우 2-3 일, 큰 주문의 경우 15-30 일 |
| 지불 조건: | T/T 또는 Western Union 또는 PayPal |
| 공급 능력: | 한 달에 5,000pc |
|
상세 정보 |
|||
| 비디오 형식: | H.264 | 해결: | 1080p, 720p |
|---|---|---|---|
| 시야각: | 120도 | 저장 용량: | 최대. 256GB |
| 입력 전압: | DC: +10V ~ +36V | 전력 소비: | < 5W(외부 장비 제외) |
| 강조하다: | ADAS DMS BSD Dashcam Recorder,4G GPS WIFI Dashcam Recorder,Fleet Management Dashcam Recorder |
||
제품 설명

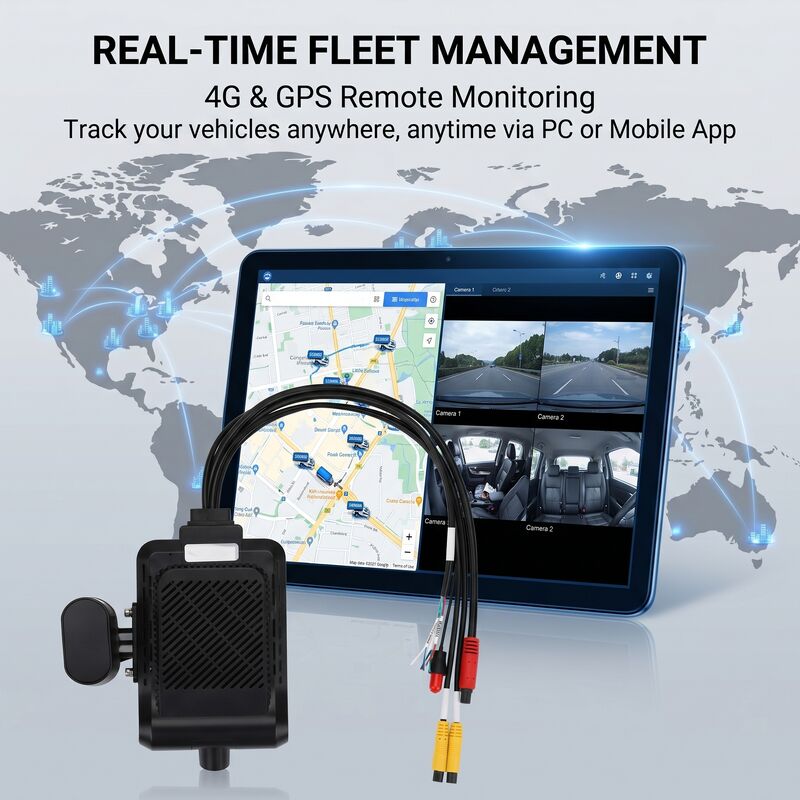

4G GPS WIFI AI ADAS DMS BSD Dashcam Recorder MDVR System
Product Overview

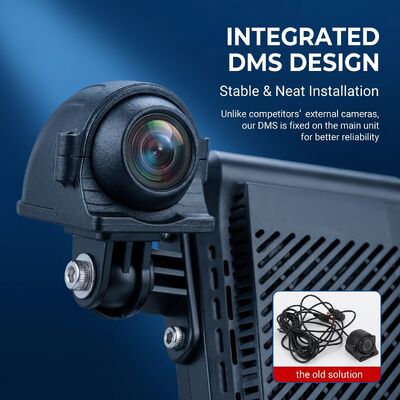

This compact, all-in-one vehicle recording solution replaces traditional in-vehicle DVRs. It combines a built-in 1080p camera (ADAS) and a built-in DSM camera, plus supports two external HD cameras - making it a flexible 4-channel system (1-CH 1080p @25fps + 3-CH 720p @25fps).
Technical Specifications
| Component | Specifications |
|---|---|
| CPU | Dual-Core processor@1.5GHz, Total coding resources 1080p*100fps NPU@1.0TOPS neural network acceleration engine |
| Memory | 2Gb DDR3 |
| Video Input | Active Pixels: 1920×1080, 1080×720; H.264 & H.265 format 2-ch Built-in CMOS camera, Low illumination 0.01LUX 2-ch External camera, AHD 720P@25fps |
| Video Output | Not support, Support mobile APP preview and setting |
| Audio Input/Output | Built-in MIC and speaker, G.711a format |
| Video Recording Resolution | 1080P/720P/D1*25fps, Simultaneous recording of sound and video |
| G-Sensor | Built-in 3-axis acceleration |
| External Interface | 2-ch RS232, reserved for communication with peripherals |
| Alarm Input | 2-ch sensor input |
| Positioning Module | Built-in GPS / Beidou Positioning Module |
| 4G | Built-in 4G module, TDD-LTE, FDD-LTE |
| WIFI | Built-in, 2.4G, 802.11b/g/n, STA or AP mode |
| TF Card | Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB |
| USB | Micro USB interface |
| Upgrade | TF card and OTA |
| AI - ADAS | Lane departure, collision alarm, Distance detection, pedestrian detection etc |
| AI - DSM | Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection |
| AI - BSD | Blind area detection |
| Input Voltage | DC: +10V ～ +36V |
| Power Consumption | Normal working state ＜ 5W (without external equipment) |
| Power Off Protection | Super capacitor design, support abnormal power failure, ensure the integrity of video files |
| Working Temperature | -25℃ to +70℃ |
| Working Relative Temperature | 20% to 80% |
| Equipment Size | 138mm × 85mm × 45mm |
| Net Weight | 0.4kg |
Product Images
Frequently Asked Questions
Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
